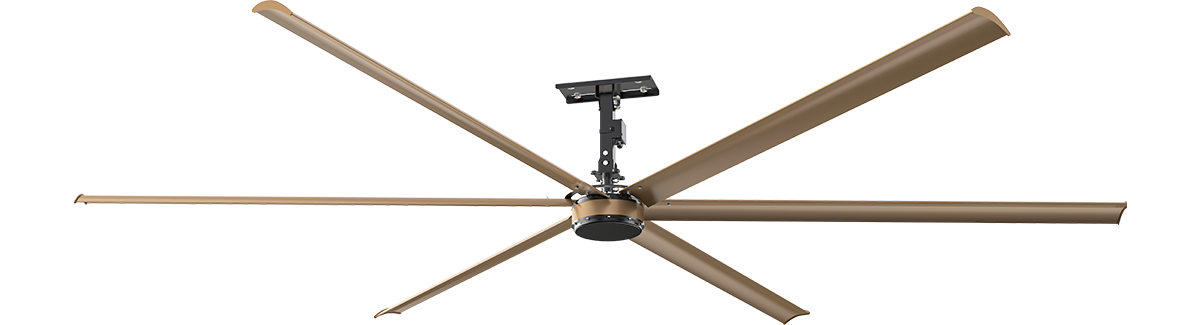

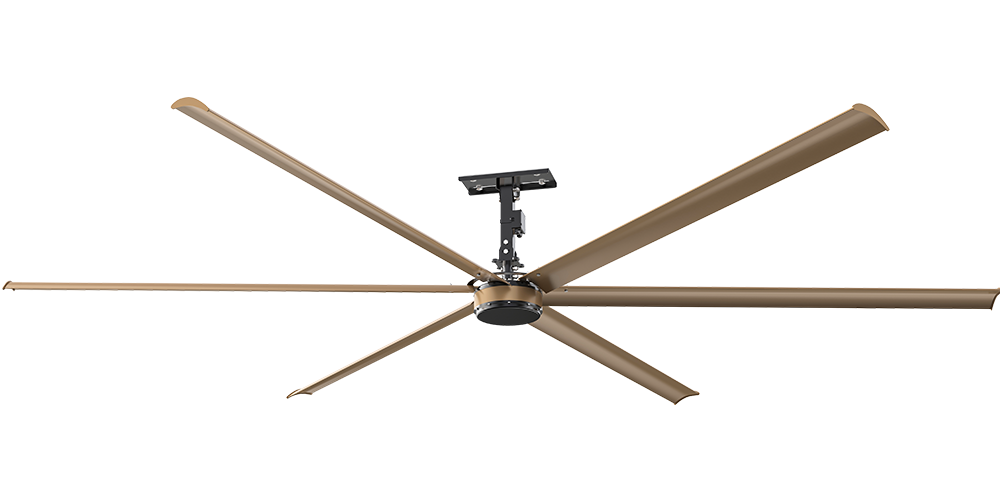

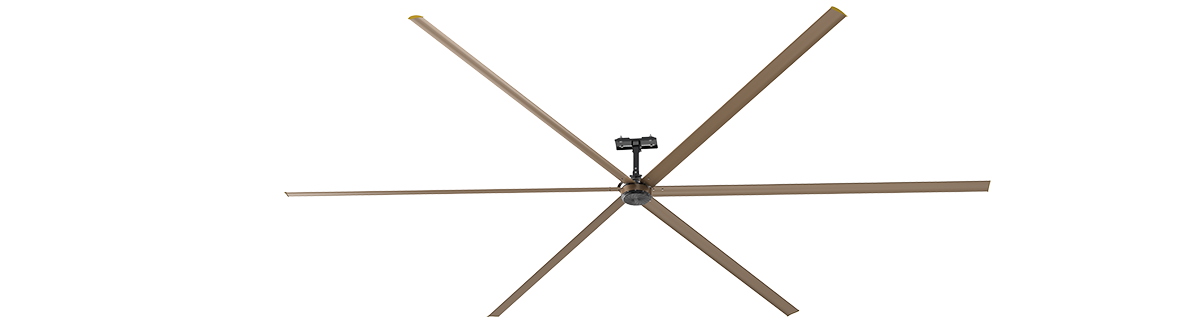

PMSM INDUSTRIAL CEILING FAN

Characteristics of permanent magnet synchronous motors:

Low operating noise and good energy efficiency;
Wide range of use, high operating efficiency, convenient speed regulation, stable operation, and stable performance,
Adopting direct drive rotation technology, it is used in special places with high noise requirements.

More intelligent

More muted

High air volume

Low energy consumption

Model	Diameter (meter)	No. of blade(pc)	Air Volume	Noise	Max rpm	Control MODE	WEIGHT	POWER	VOLTAGE
YD-73B-6	7.3	6	13800m3	≤40db	20-52r/m	Frequency control	130kg	1.5kw	220v/380 50hz/60hz
YD-70A-6	7	6	13000m3	≤40db	20-52r/m	Frequency control	100kgs	1.5kw	220v 50hz/60hz
YD-61A-5	6.1	5	12000 m3	≤40db	20-60r/m	Frequency control	100kgs	1.1kw	220v 50hz/60hz
YD-61A-5	6.1	5	12000 m3	≤40db	20-60r/m	Frequency control	100kgs	1.1kw	220v 50hz/60hz
YD-61B-6	6.1	6	11000 m3	≤40db	20-60r/m	Frequency control	90kgs	0.95kw	220v 50hz/60hz
YZ-50B-6	5	6	9800 m3	≤40db	20-70r/m	Frequency control	55kgs	0.75kw	220v 50hz/60hz
YZ-42B-6	4.2	6	9200 m3	≤40db	20-85r/m	Frequency control	51kgs	0.55kw	220v 50hz/60hz
YZ-30A-6	3	6	6500 m3	≤40db	20-100r/m	Frequency control	40kgs	0.40kw	220v 50hz/60hz

Configuration features：

Motor system

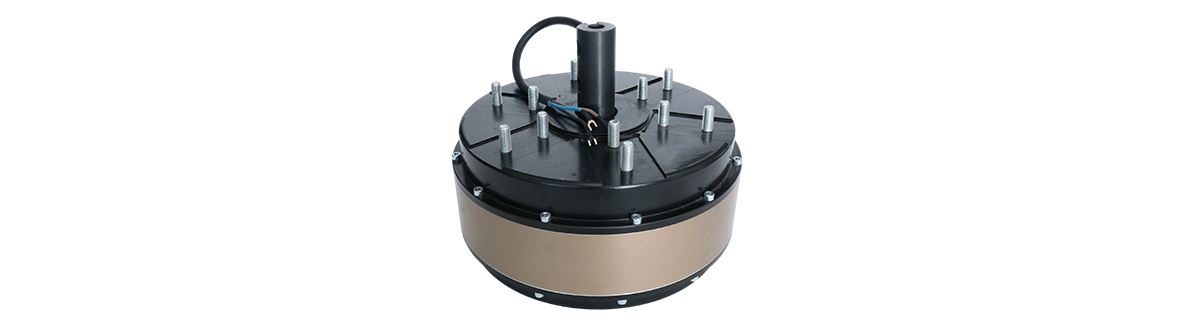

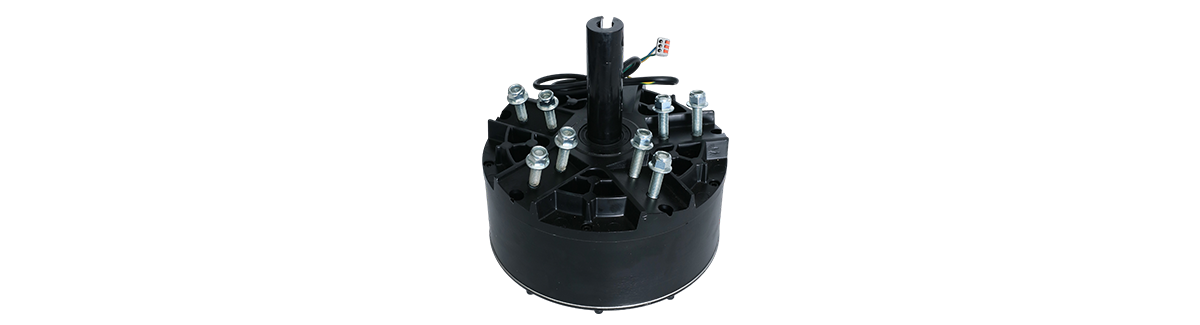

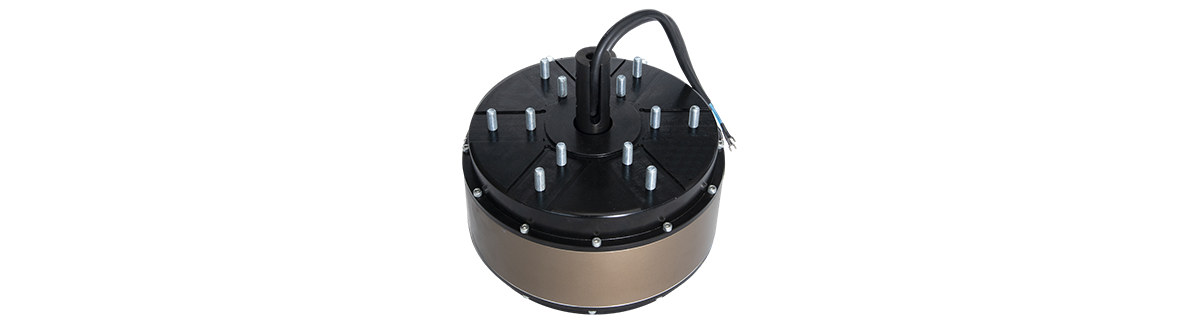

The permanent magnet synchronous motor we designed is Level F insulation, the motor takes top level magnet steel, silicone steel stacking in group, 60 round aluminum group located. Denuo series motors choose automatic wire winding and embedding integrated technical to realize the maximum torque , then the fan will have much energy reserve ,this resolve the problem of heat of the machine, in this way, the fan could work more efficient for a long time.

Fan Blade

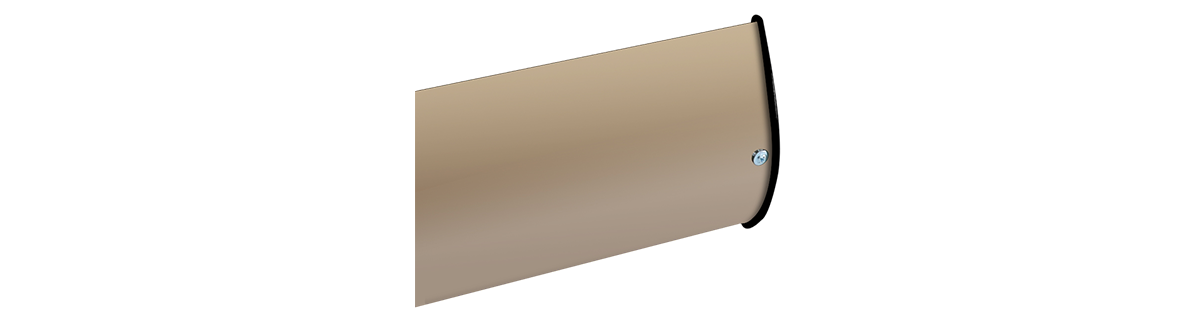

1. The design was made by advanced CFD imitate software and wind tunnel experiment , the streamlined blade adopts aerodynamics principles

2. The blade is made of aluminum alloy 6063# , then through T6 process, very strong ,corrosion preventive .

3. Oxidation treatment process make sure surface of the blade easy to clean .

4. The deflector on rear prevent air flow back into blade, low down the air resistance .

Control system

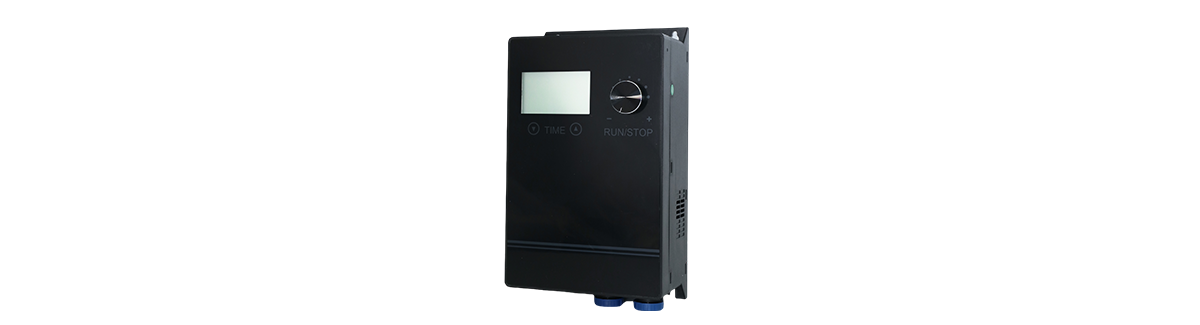

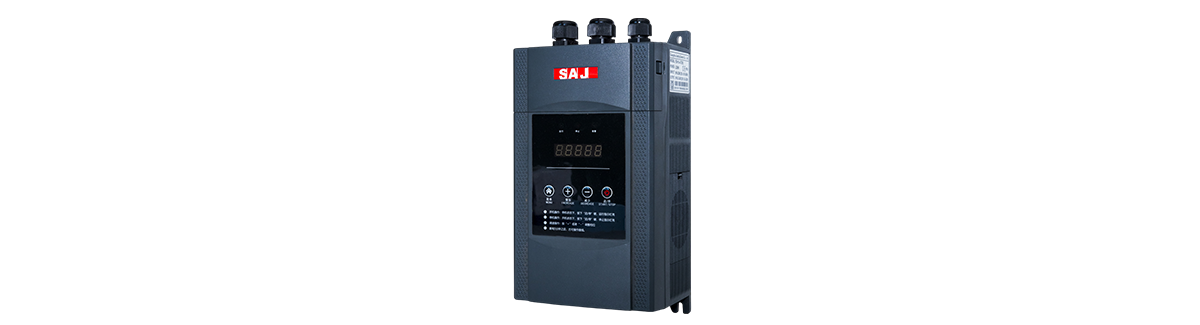

1. Imported variable frequency controller is selected for stepless speed regulation

2. The dedicated frequency converter for the fan can carry high carrier waves, reduce motor squealing, improve pulse signal quality, and have a built-in filter to reduce interference.

3. The control system comes with over voltage, under voltage, phase loss, and overload protection,Automatic power outage protection in case of unexpected situations.

4. Digital display on screen for more convenient monitoring.
