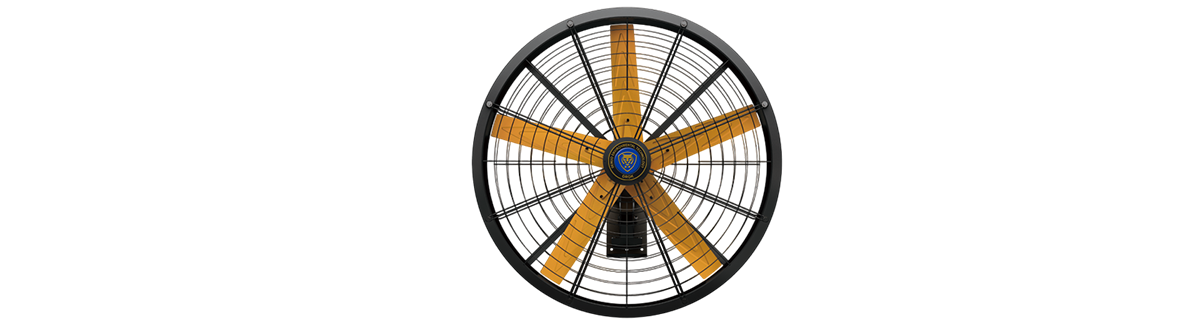

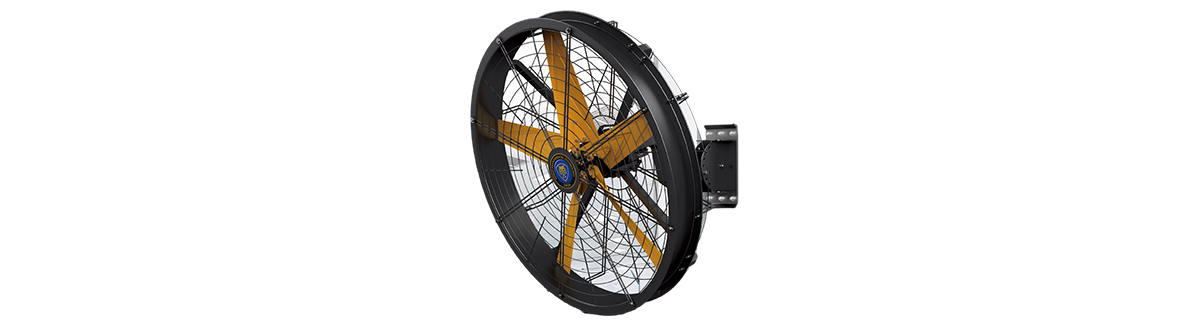

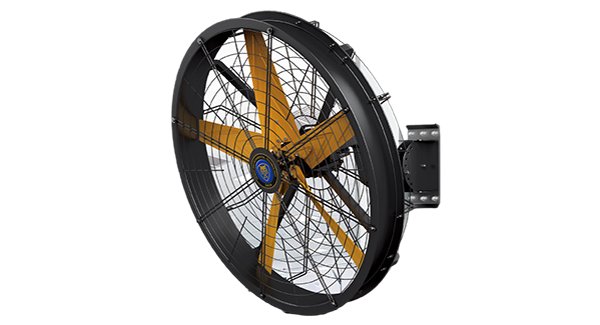

DENUO BG series permanent magnet variable frequency wall fan is a new type of industrial fan specially designed for factories and workshops with limited ventilation space.Adopt self-designed frequency conversion speed regulation, high efficiency and energy saving permanent magnet synchronous motor. It has the advantages of low noise, small volume,light weight and beautiful appearance.
Fans adopt a unique airfoil blade design with a diameter of 0.9-2m.It adopts the principle of aerodynamics and advanced technology to produce a natural breeze system through the circulating airflow field formed by the powerful air stirring force.The human body will feel the three-dimensional wind from all directions, increase the evaporation area of sweat and improve the comfort.At the same time,avoid using the traditional high-speed fan to cause various health problems of human body under directional wind all the year round,and greatly improve the environmental comfort.Denuo BG series wall fan can be adjusted according to the actual demand of different occasions,the wind speed within the range of 1m-6.7m/s can be adjustable.In the open space,the maximum air supply distance of an energy-saving fan is up to 24m.
Energy efficient
IP55 protection standard
Convenient installation
Maintenance free
Low usage cost
Super mute
| 型号 Model | 电压 Voltage (V) | 频率 Frequency (Hz) | 电流 Current (A) | 功率 Power (W) | 转速 Rotating Speed (r/min) | 风速 Air speed (m/s) | 风量 Air flow (m³/h) | 噪音 Noise (dB) | 送风距离 Air Supply distance (m) |
| BG-F2000 | 380/220 | 50/60 | 4.6/8 | 1100 | 300 | 6 | 70000 | ≤45 | ≤24 |
| BG-F1500 | 380/220 | 50/60 | 3.4/5.9 | 750 | 390 | 6.1 | 40000 | ≤45 | ≤24 |
| BG-F1200 | 380/220 | 50/60 | 2/3.4 | 550 | 450 | 6.3 | 26000 | ≤45 | ≤20 |

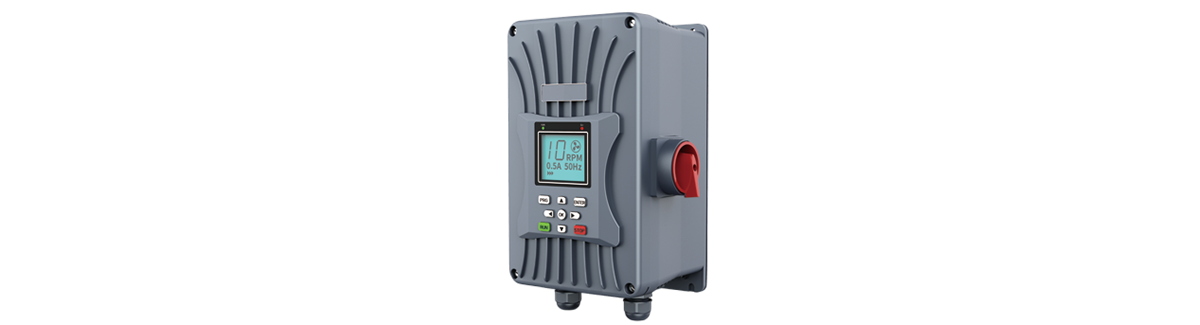

• Control system: IP54 protection grade, no fear of external oil, dust, moisture interference, VVC control technology is simple to debug, high adaptability.
• The system is positionless positive spin wave vector control, anti-electromagnetic interference, anti-radiation, small size, light weight and exquisite appearance.
• System function is simple, 4 keys operation is easy to understand (start, stop, acceleration, deceleration).
• The system comes with over-voltage, under-voltage, loss of voltage regulation, current, phase loss, overload, collision, overheating, lightning strike, abnormal and other protection.
• Customizable intelligent control methods: WLAN, Bluetooth, 4G, time, PID, centralized control.

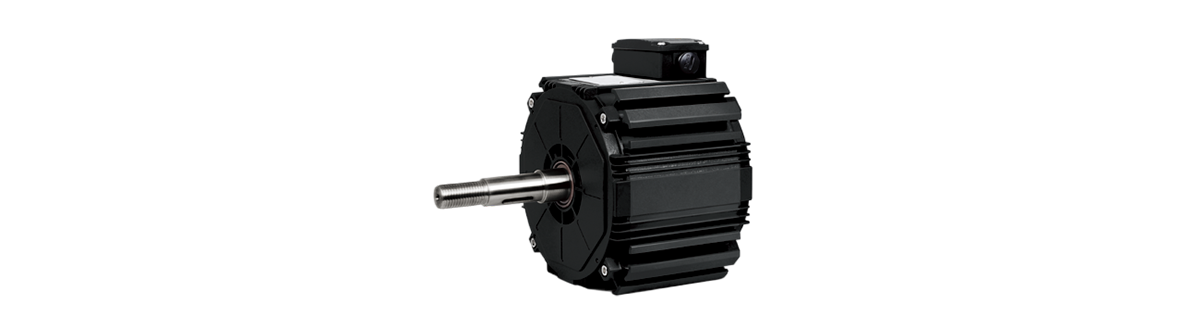

1. No copper loss of stator
2. High efficiency
3. High power factor
4. Improve grid environment
5. FM width(0~100HZ)
6. Small size and light weight
7. Energy efficient (Power saving)

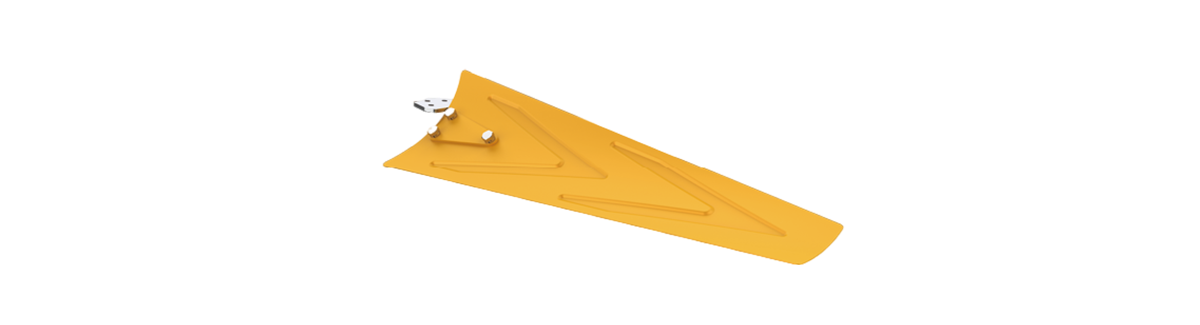

Adopting aluminum-magnesium alloy extrusion molding, with high strength, good toughness, light weight, long life.
The wall fan is customized to solve the complex environment that is not suitable for the installation of industrial large ceiling fans, and can be used for some factors such as ceiling structure, load bearing, crane, etc. Places where the installation space of industrial large ceiling fan is not ideal. It is a new type of fan for space ventilation and personnel cooling in industrial plant, logistics warehouse, waiting room, exhibition hall, gymnasium, large shopping mall and other large space places.
