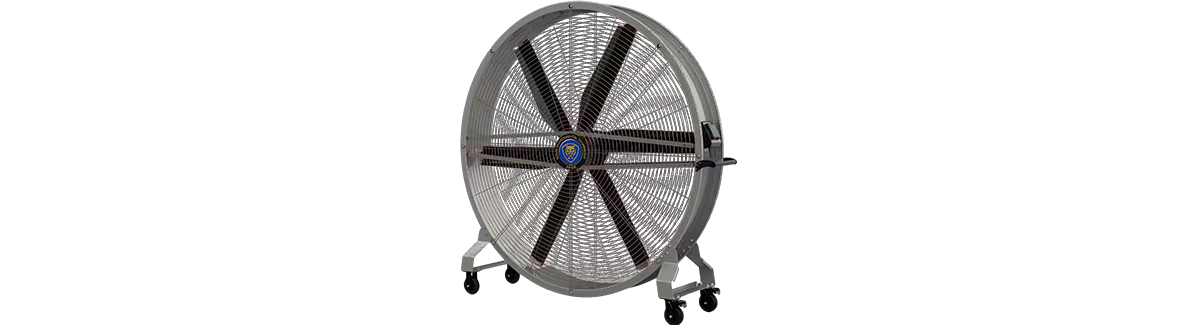

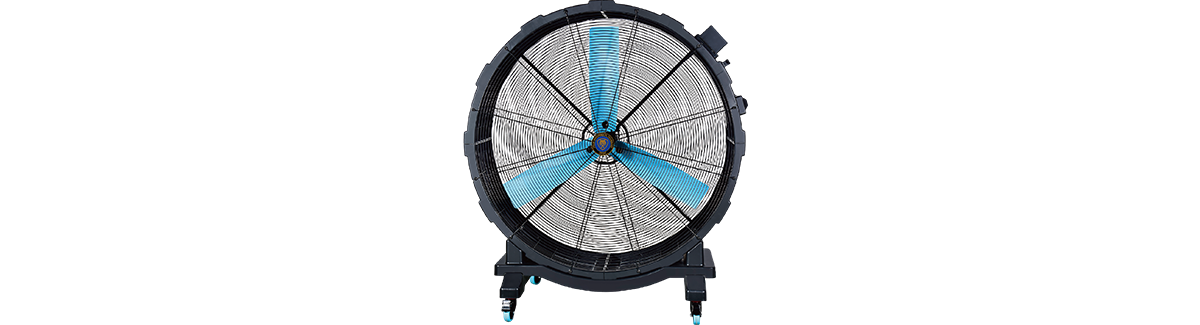

LS series movable fan unique wing design, adopting the principle of aerodynamics and advanced technology manufacturing blades wing, formed by strong air agitation ability of circulation flow field, produce like the breeze system of nature, the body will feel three-dimensional wind from all directions, increased sweat evaporation area, increase your comfort level.LS series fans can be combined with the actual needs of different occasions to adjust the wind volume, the wind speed in the range of 1m-6m /s can be arbitrarily adjusted.in the open space, the industrial energy-saving mobile fan's maximum blowing distance is 30 meters.
More intelligent
More muted
High air volume
Low energy consumption
| MODEL | INNER FRAME DIAMETER | NUMBER OF BLADES | AIR VOLUME | NOISE | MAX IMUMRPM | CONTROL MODE | OVERALL WEIGHT | POWER | VOLTAGE |
| DN-LS-F1400-3 | 1.4m | 3 | 1000m³/min | ≤40DB | 480 | FREQUENCY CONTROL | 58KG | 600W | 220V |
| DN-LS-F1500-6 | 1.5m | 6 | 1200m³/min | ≤40DB | 420 | FREQUENCY CONTROL | 93KG | 750W | 220V |
| DN-LS-F2000-6 | 2m | 6 | 1400m³/min | ≤40DB | 300 | FREQUENCY CONTROL | 122KG | 1000W | 220V |
1.High energy efficiency design:
The mobile fan adopts a 220V permanent magnet brushless motor with high air volume and low speed, completely solving the conflict between low air volume and high energy consumption,Infinite speed control can better meet your precise control of air volume.
2.Flexible mobility:
The universal casters for indoor and outdoor use can be moved to any position you need, with built-in foot brakes for easy operation, flexibility, and reliability.
3.Plug and Play:
No installation required, just plug into the socket.

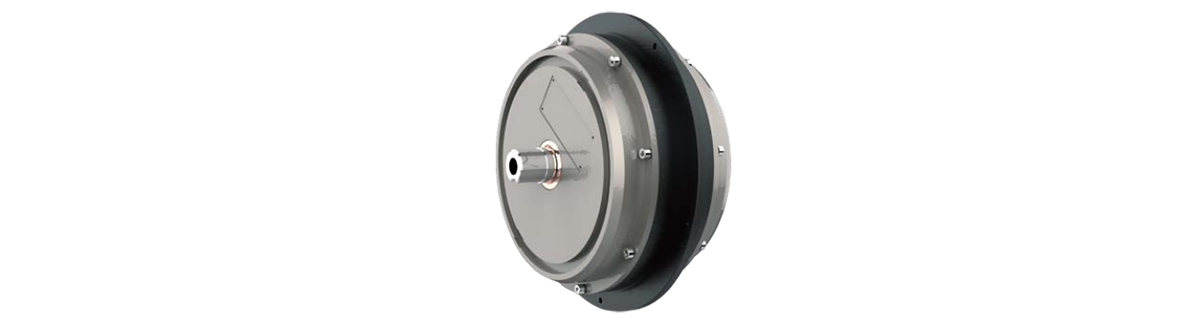

PERMANENT MAGNET SYNCHRONOUS MOTOR
• Without rotor losses
• High efficiency and precision
• Large power factor
• Improve grid operating environment.
• Frequency modulation width (0~200HZ)
• Small size and light weight
• Saving energy and high efficient

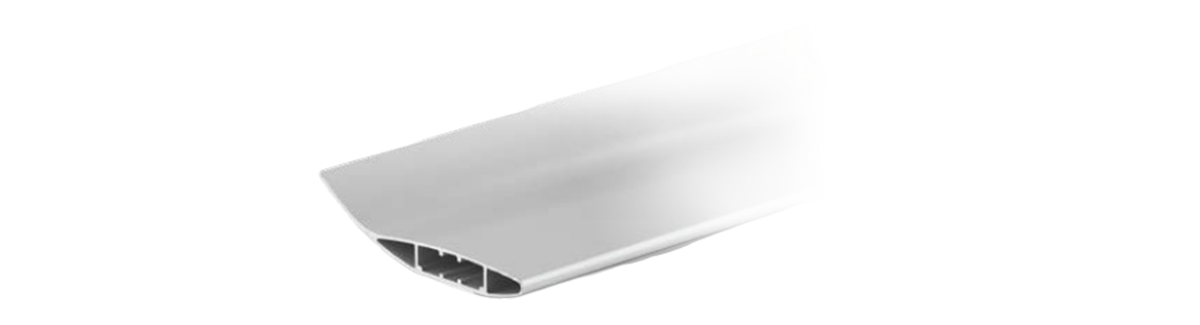

STREAMLINED FAN BLADE + ENERGY SAVING TAIL
It is made of aluminum and magnesium alloy extruded and stretched, and has the advantages of high strength, good toughness, light weight, long life and safe operation. The fan blade surface is treated with T5+ bright surface oxidation treatment, which enhances the corrosion and oxidation resistance of the fan blade and can cope with special environmental operations.

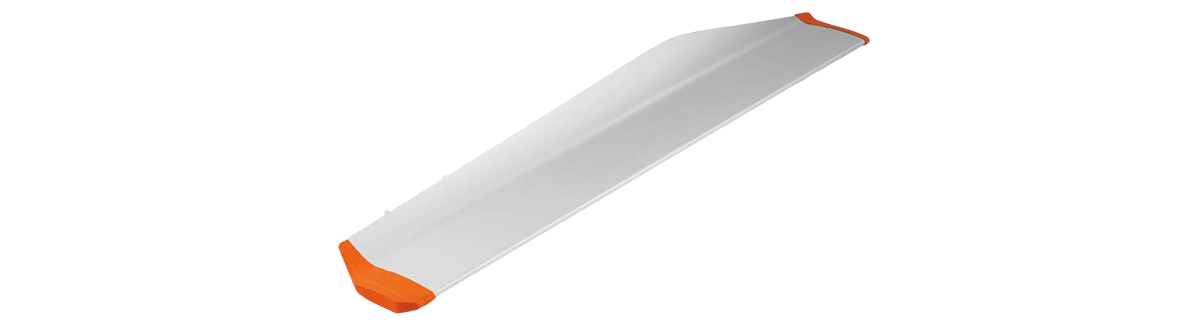

When the fan blade is running, the air will generate vortex at the end of the aerofoil fan blade. The tail wing can eliminate this part of energy loss, stabilize the fan operation, and make the air flow more consistent with the aerodynamic principle.

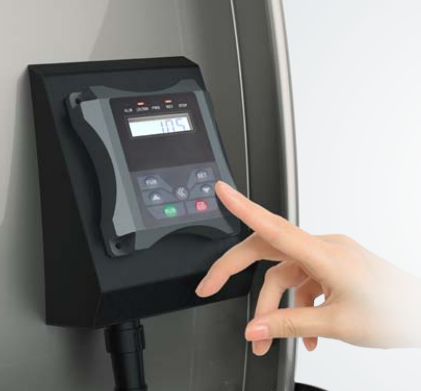

SMART CONTROL SYSTEM
The system is no position vector control, anti - electromagnetic interference, anti - radiation, small size, light weight, beautiful appearance.
• System function is simple, 4 buttons easy to operation (start, stop, speed up, slow down).
• System with overvoltage, undervoltage, voltage loss regulation, current, lack of phase, overload, collision, overheating, lightning, abnormal protection.
